SXRX Manual SXRXS-FS001
Rectangular Flange Burner

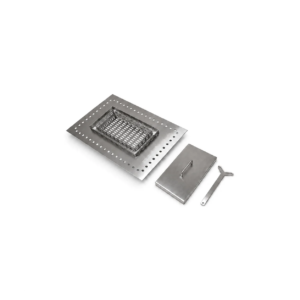

A silver manual bioethanol burner with a perforated flange, mesh chamber and separate handled lid.
- Reference dimensions (mm)
- Base burner: 500 × 500 × 105 / Base burner: 1000 × 1000 × 105
- Supply scope
- Base configuration reference; confirm complete product scope
- Glass
- Glass not included.
Previous reference price; current quotation required.
Purchase options
Confirm configuration, quantity and price before ordering.
10 in stock
- Reference lead time
- 7–15 days
- Freight
- To be agreed for the destination.
- After-sales support
- Remote assistance and return for repair.
Configuration dimensions
- Reference dimensions (mm)
- Base burner: 500 × 500 × 105 / Base burner: 1000 × 1000 × 105
Product references are not installation openings. Confirm the opening, support and clearances for the selected configuration.
Compare all configuration sizes & reference prices
Configuration reference
Sizes and reference prices
No size is selected as a default. Final configuration, price and lead time are confirmed in the written quotation.
Prices shown in CNY. Final currency and total are confirmed in the written quotation.
Reference lead time · All configurations
- 1, 5 or 10 units
- 7–15 days
Applies to all configurations
Base configuration reference; confirm complete product scope
Base burner dimensions; finished enclosure dimensions require confirmation against the final drawing.
Scroll across to compare every specification.
| Model / SKU | Dimensions (mm) | Package dimensions (mm) | Packed weight (kg) | Reference price (USD) |
|---|---|---|---|---|
| SXRXS-FS001-1000 | Base burner: 1000 × 1000 × 105 | 1005 × 1005 × 150 | 26 | USD 577.19 |
| SXRXS-FS001-900 | Base burner: 900 × 900 × 105 | 905 × 905 × 150 | 23 | USD 519.47 |
| SXRXS-FS001-800 | Base burner: 800 × 800 × 105 | 805 × 805 × 150 | 20 | USD 461.75 |
| SXRXS-FS001-700 | Base burner: 700 × 700 × 105 | 705 × 705 × 150 | 17 | USD 404.03 |
| SXRXS-FS001-600 | Base burner: 600 × 600 × 105 | 605 × 605 × 150 | 15 | USD 346.32 |
| SXRXS-FS001-500 | Base burner: 500 × 500 × 105 | 505 × 505 × 150 | 13 | USD 288.60 |
Base burner operating references
These parameters describe the recorded base burner. Confirm the complete fireplace, supplied assembly and installation opening separately.
Product details
A silver manual bioethanol burner with a perforated flange, mesh chamber and separate handled lid. The finished outline is confirmed by drawing.
SXRXS-FS001 is an SXRX Manual bioethanol burner with a perforated silver flange around a mesh chamber. A separate lid and operating tool are shown beside the assembly.
Manual bioethanol burner flange and base dimensions
The base references are 500–1000 mm square in 100 mm increments, at 105 mm high. These square base sizes do not define the complete outside panel or enclosure; confirm the finished outline and dimensions on the selected drawing.
Specify the flange shape and installation space. The selected drawing must show the base-to-panel arrangement, total height, lid and support.
Review the fireplace planning guide when coordinating the selected configuration and its installation drawing.
Frequently asked questions
Is this a square or rectangular configuration?
The base references are square. Confirm the exact outside panel shape and dimensions on the final SXRXS-FS001 drawing rather than using the base reference as the finished outline.
What distinguishes its top panel?
The image shows rows of perforations around a central mesh chamber, with a separate lid and tool. Their finished dimensions and inclusion should be confirmed in the quote.
- Minimum order quantity
- 1 unit
