SXKT Smart SXKT-001

SXKT-001 smart bioethanol burner insert with remote and app control

The SXKT-001 is an automatic linear bioethanol burner insert for media walls, built-in fireplaces and hospitality projects. Light it, adjust it and switch it off from the touchscreen, the remote or your phone.

Reference dimensions (mm): 1200 × 260 × 230 / 2400 × 260 × 230
Supply scope: Burner only. Confirm accessories and any surrounding assembly.
Glass: Glass included as standard.

Price on request

Control methodTouchscreen · Remote · Android App

LengthsRequest a quote for your size Chat on WhatsApp: +86 189 1214 7853

Single units and samples welcome. Tell us the length, quantity and destination; we reply with price, lead time and shipping options.

Trade pricing

Purchase options

Confirm configuration, quantity and price before ordering.

Discuss dimensions & installation

Watch the flame Operating specifications

Reference lead time: 7–15 days
Freight: To be agreed for the destination.
After-sales support: Remote assistance and return for repair.

Three ways to control: touchscreen, remote control and the official SXFireplace Android app (2.4 GHz Wi-Fi, in English, French, Spanish, Arabic and Chinese)
20 flame settings plus thermostat, timer and child lock
Automatic fuel filling and draining: no pouring fuel into the burner by hand
13 lengths from 1200 to 2400 mm (47–94 in), 260 mm wide × 230 mm high
Fuel tank 12–24 L, depending on length
Factory-sized glass included
Ventless: no chimney, flue or gas line
MOQ 1 unit, reference lead time 7–15 days

Key specifications

Specification	SXKT-001
Type	Automatic (smart) linear bioethanol burner insert
Lengths	13 sizes, 1200–2400 mm in 100 mm steps (47–94 in)
Width × height	260 × 230 mm (10.2 × 9.1 in)
Fuel tank	12 L (1200 mm) to 24 L (2400 mm), 1 L per 100 mm
Fuel consumption	0.8–3 L/h per meter of burner (manual reference, depends on flame setting)
Flame settings	20
App languages	English, French, Spanish, Arabic, Chinese
Comfort functions	Thermostat, timer, child lock
Refuelling	Automatic fill and drain via hose
Max electrical input	1250 W (1200 mm) to 2450 W (2400 mm); varies with flame setting, not drawn continuously
Glass	Factory-sized glass included
Options	Smart-home interface, external fuel tank, custom finish
Packed size / weight	1270 × 350 × 410 mm, 46 kg (1200) to 2470 × 350 × 410 mm, 90 kg (2400); wooden case
MOQ / lead time	1 unit · 7–15 days reference for 1, 5 or 10 units

Real flame videos

Recorded configurations may differ from the size and finish you order.

Watch the flameModel reference · 00:17

Watch the flame

Open video in a new tab

SXKT model reference. The recorded length and finish are not a confirmation of your selected configuration.

Watch the flame · KT2400Model reference · 03:18

Watch the flame

Open video in a new tab

The source identifies this recording as KT2400. Other selected lengths and finishes may differ.

Dimensions and installation

Check the selected size before planning the opening.

申请安装适配核查

Configuration dimensions

Reference dimensions (mm): 1200 × 260 × 230 / 2400 × 260 × 230

Product references are not installation openings. Confirm the opening, support and clearances for the selected configuration.

SXKT-001 sizes and prices

One burner, 13 lengths. Every size is 260 mm wide and 230 mm high and includes glass, remote and app control. Pick the length that suits your wall, then request a quote for that SKU.

SKU	Length	Nominal size	Fuel tank	Packed size (mm)	Packed weight	Price (USD)
SXKT-001-1200	1200 mm	47.2 in	12 L	1270 × 350 × 410	45.96 kg	Price on request
SXKT-001-1300	1300 mm	51.2 in	13 L	1370 × 350 × 410	49.4 kg	Price on request
SXKT-001-1400	1400 mm	55.1 in	14 L	1470 × 350 × 410	54 kg	Price on request
SXKT-001-1500	1500 mm	59.1 in	15 L	1570 × 350 × 410	57.45 kg	Price on request
SXKT-001-1600	1600 mm	63.0 in	16 L	1670 × 350 × 410	61.28 kg	Price on request
SXKT-001-1700	1700 mm	66.9 in	17 L	1770 × 350 × 410	66 kg	Price on request
SXKT-001-1800	1800 mm	70.9 in	18 L	1870 × 350 × 410	69 kg	Price on request
SXKT-001-1900	1900 mm	74.8 in	19 L	1970 × 350 × 410	72.77 kg	Price on request
SXKT-001-2000	2000 mm	78.7 in	20 L	2070 × 350 × 410	79.6 kg	Price on request
SXKT-001-2100	2100 mm	82.7 in	21 L	2170 × 350 × 410	80 kg	Price on request
SXKT-001-2200	2200 mm	86.6 in	22 L	2270 × 350 × 410	84.26 kg	Price on request
SXKT-001-2300	2300 mm	90.6 in	23 L	2370 × 350 × 410	88 kg	Price on request
SXKT-001-2400	2400 mm	94.5 in	24 L	2470 × 350 × 410	90 kg	Price on request

Prices are for the burner with glass, ex-works, before shipping and duties. Trade and volume pricing

Operating specifications

Confirm the configuration and current technical sheet before ordering.

Compare operating specifications (13)

Fuel consumption reference: 0.8–3 L/h per metre.

Electrical input varies with the flame setting; maximum power is not drawn continuously. Electrical input is not heat output.

Model configuration references
Length (mm)	Fuel capacity (L)	Electrical input (W)
1200	12	1250
1300	13	1350
1400	14	1450
1500	15	1550
1600	16	1650
1700	17	1750
1800	18	1850
1900	19	1950
2000	20	2050
2100	21	2150
2200	22	2250
2300	23	2350
2400	24	2450

SXKT App

Currently available for Android only.

Available in Chinese, English, French, Spanish and Arabic.

Select a screenshot to enlarge.

Download the official SXFireplace Android app (APK)

32.1 MB · 2026-10-06

SXKT App language selection screen — Language selection
Choose your display language.

SXKT App fireplace list and group power controls — My fireplaces
Find individual fireplaces or switch a group on the same Wi-Fi network.

SXKT App flame adjustment and control settings — Fireplace control
Flame adjustment, timer, heating settings and control lock.

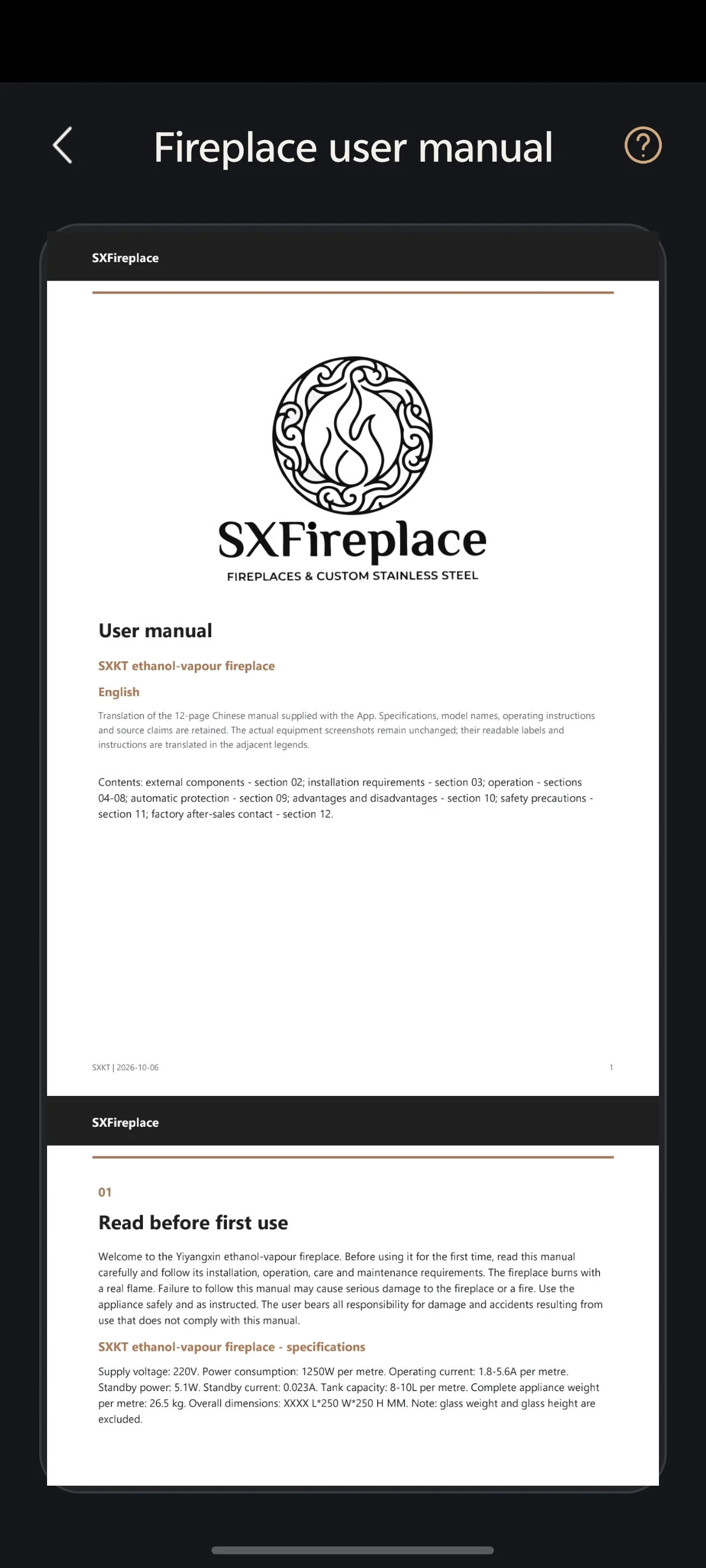

SXKT App with the English user manual open — User manual
Read the supplied SXKT manual in the App.

SXFireplace SXKT Smart Bioethanol Burner Insert with Remote Control — Product view 7 — Interior concept · For visual reference

Product details

A smart ethanol burner built for real projects

The SXKT-001 is our flagship smart bioethanol burner: a long, clean flame line in a broad silver-toned top plate, designed to be built into a wall, a media unit or a stone surround. Instead of pouring fuel and lighting a flame by hand, you fill a tank through a hose and let the burner do the rest. A touch of the screen, the remote or the app ignites it, sets one of 20 flame levels, and turns it off again.

Controls that work the way you live

Touchscreen on the unit for day-to-day use.
Remote control from the sofa.
Official SXFireplace Android app over 2.4 GHz Wi-Fi to switch the fire on and off, adjust the flame, set the timer and thermostat, lock the controls, and group several fireplaces on the same network. The app is available in five languages and includes the user manual.

Sized for media walls, lounges and lobbies

With 13 lengths from 1200 to 2400 mm, the SXKT-001 covers everything from a 48-inch living-room fireplace to a 94-inch hotel lobby feature. Many designers match the flame line to the TV width or the joinery module. Not sure which length suits your wall? Read: choosing an SXKT linear fireplace length

Installation

The SXKT-001 installs in a non-combustible enclosure with a power supply, an air inlet below the burner and access for refuelling and service. Installation and cutout drawings are available in Product resources below, and every order comes with the drawing for the size you buy. Cut the opening from that drawing, not from the nominal length. SXKT-001 installation guide

Who it is for

Homeowners and designers who want a real-flame media wall without a chimney.
Hotels, restaurants and showrooms that need staff-friendly push-button control and a long, even flame. Hospitality planning
Distributors who need a premium smart burner alongside the SXRX range. Distributor program

SXKT-001 vs SXRX smart burners

	SXKT-001	SXRX-L-005
Controls	Touchscreen, remote, Android app	On-unit buttons, remote
Flame levels	20	Not user-adjustable
Wi-Fi / app	Yes	No
Lengths	1200–2400 mm	500–2400 mm
Glass	Included	Not included

More detail

Safety

The SXKT-001 refuels automatically from a closed tank, so you never pour fuel near a hot burner, and the child lock blocks accidental ignition. Smart control does not replace supervision: never leave the fire burning unattended, use only the fuel specified in the manual, keep the clearances on the drawing and ventilate the room.

What's in the box

SXKT-001 burner in your chosen length
Factory-sized glass
Remote control
Fuel filling and draining hose
Cleaning cloth
Power cable
User manual and document package
Download link and setup instructions for the official Android app

Not included: fuel, the surrounding enclosure or frame, electrical work and installation. SXFireplace does not sell fuel. Check your delivery on arrival

Supply scope and options

Confirm the supplied components for your order.

Read the model installation guide

Glass

Glass included as standard.

Burner or complete fireplace

The model identifies the burner. A frame, decorative shell, supporting enclosure and installation work must be itemised separately in the accepted quotation.

Standard controls

Touchscreen, remote control and Android App in Chinese, English, French, Spanish and Arabic. The App uses the supplied download and a 2.4 GHz Wi-Fi setup; Bluetooth is not supported.

Glass and accessories

The standard KT package includes the factory-sized glass, remote, filling/draining hose, cloth, manual/document package and power line. Confirm the exact delivered version and accessory list with the order.

Options and custom work

Smart-home connection and an external fuel tank are optional. Custom dimensions, finishes and enclosure work need technical review and a confirmed drawing.

Fuel and installation

SXFireplace does not sell fuel. Installation materials, electrical work, site works and fuel supply must be coordinated for the project and identified separately from the product supply.

SXKT-001 FAQs

Does the SXKT-001 need a chimney?

No. The SXKT-001 is a ventless bioethanol burner and needs no chimney, flue or gas line. It does need a power supply, a non-combustible enclosure with the air inlet shown on the drawing, and a room with normal ventilation.

Is the SXKT-1200 a different product from the SXKT-001?

No. SXKT-001-1200 is the 1200 mm (47 in) size of the SXKT-001, with the same controls, 20 flame settings and automatic refuelling. All 13 lengths share the same 260 × 230 mm cross-section.
