SXRX Manual SXRXS-SY-001
Round Wide-Flange Insert

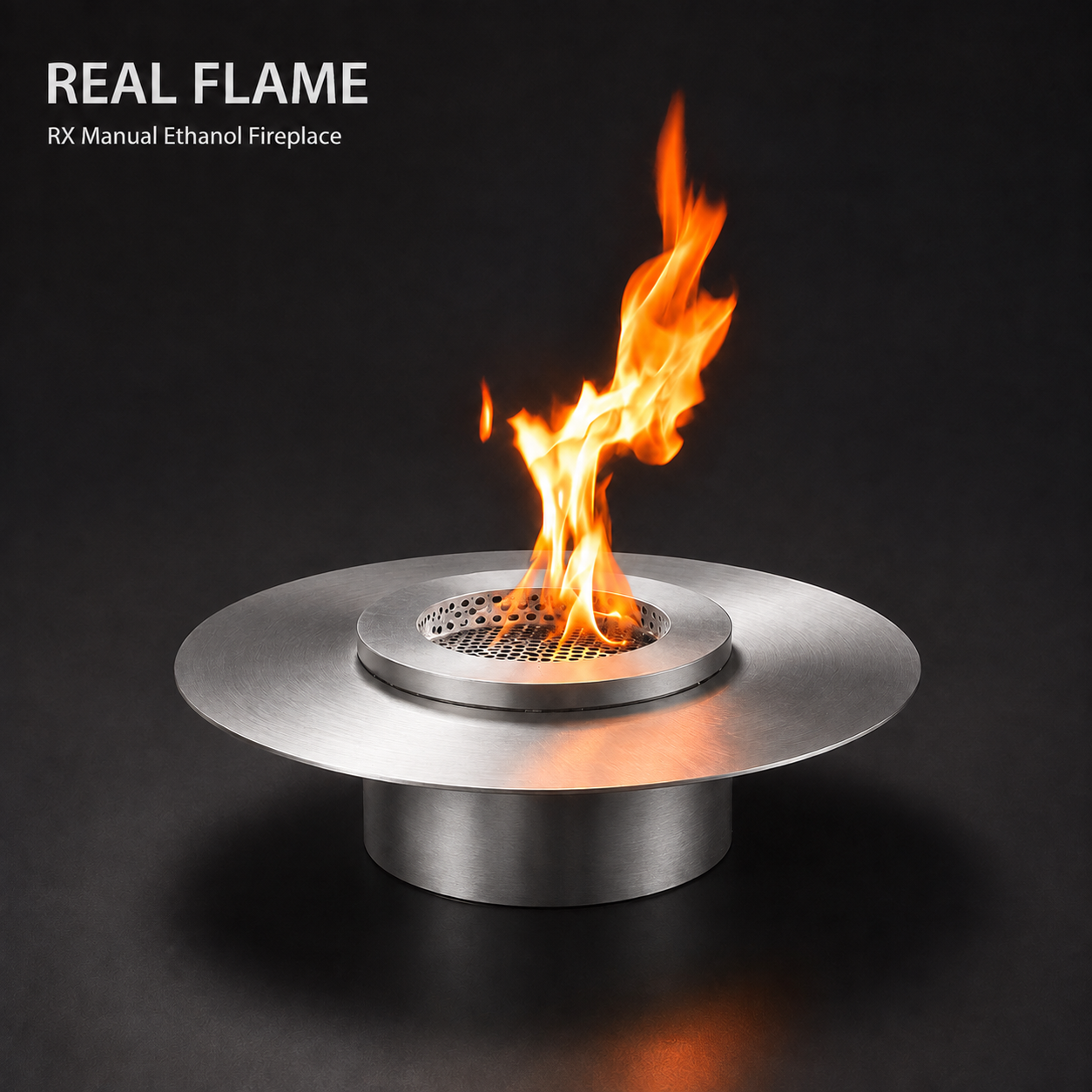

A round manual bioethanol insert with a broad flat silver flange and raised mesh-lined center.
- Reference dimensions (mm)
- Base burner: 300 × 105 / Base burner: 1000 × 105
- Supply scope
- Price to confirm against the current configuration
- Glass
- Glass not included.
Previous reference price; current quotation required.
Purchase options
Confirm configuration, quantity and price before ordering.
10 in stock
- Reference lead time
- 7–15 days
- Freight
- To be agreed for the destination.
- After-sales support
- Remote assistance and return for repair.
Dimensions and installation
Check the selected size before planning the opening.
Request an installation fit checkConfiguration dimensions
- Reference dimensions (mm)
- Base burner: 300 × 105 / Base burner: 1000 × 105
Product references are not installation openings. Confirm the opening, support and clearances for the selected configuration.
Compare all configuration sizes & reference prices
Configuration reference
Sizes and reference prices
No size is selected as a default. Final configuration, price and lead time are confirmed in the written quotation.
Prices shown in CNY. Final currency and total are confirmed in the written quotation.
Reference lead time · All configurations
- 1, 5 or 10 units
- 7–15 days
Applies to all configurations
Price to confirm against the current configuration
Dimensions are for the base burner; confirm the finished cover and flange dimensions.
Scroll across to compare every specification.
| Model / SKU | Dimensions (mm) | Package dimensions (mm) | Packed weight (kg) | Reference price (CNY) |
|---|---|---|---|---|
| SXRXS-SY-001-1000 | Base burner: 1000 × 105 | 1120 × 250 | To confirm | To confirm |
| SXRXS-SY-001-900 | Base burner: 900 × 105 | 1020 × 250 | To confirm | To confirm |
| SXRXS-SY-001-800 | Base burner: 800 × 105 | 920 × 250 | To confirm | To confirm |
| SXRXS-SY-001-700 | Base burner: 700 × 105 | 820 × 250 | To confirm | To confirm |
| SXRXS-SY-001-600 | Base burner: 600 × 105 | 720 × 250 | To confirm | To confirm |
| SXRXS-SY-001-500 | Base burner: 500 × 105 | 620 × 250 | To confirm | To confirm |
| SXRXS-SY-001-400 | Base burner: 400 × 105 | 520 × 250 | To confirm | To confirm |
| SXRXS-SY-001-300 | Base burner: 300 × 105 | 420 × 250 | To confirm | To confirm |
Product details
A round manual bioethanol insert with a broad flat silver flange and raised mesh-lined center. Confirm the outer flange for your surround.

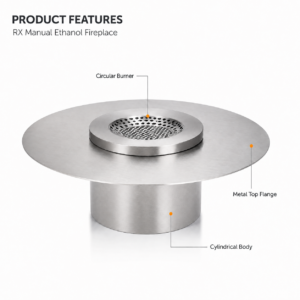

This wide-flange round manual bioethanol insert in the SXRX Manual range has a broad flat silver top around a raised circular burner rim. The central mesh opening and short lower cylinder distinguish it from the dished-top round design.
Wide-flange round manual bioethanol insert sizing

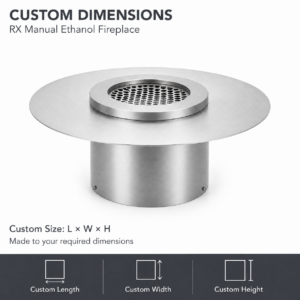

The associated base-burner references are 300–1000 mm in diameter at 105 mm high. These dimensions do not define the finished cover or the outside edge of the broad flange.

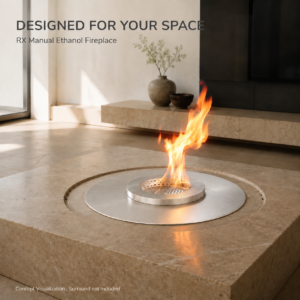

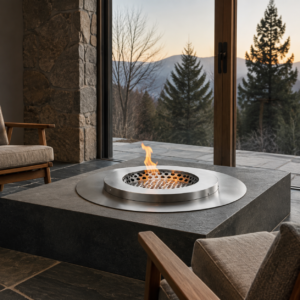

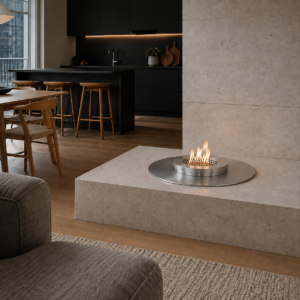

For a circular built-in feature, specify the desired visible flange diameter and request the final support and opening details. Confirm the complete top configuration and quotation before preparing the surrounding surface.
Review the fireplace planning guide when coordinating the selected configuration and its installation drawing.
Frequently asked questions
What is the outer flange diameter?
The finished flange diameter is not established by the base-burner range. Request the selected cover and flange dimensions on the final drawing.
How is this different from the dished-top round insert?

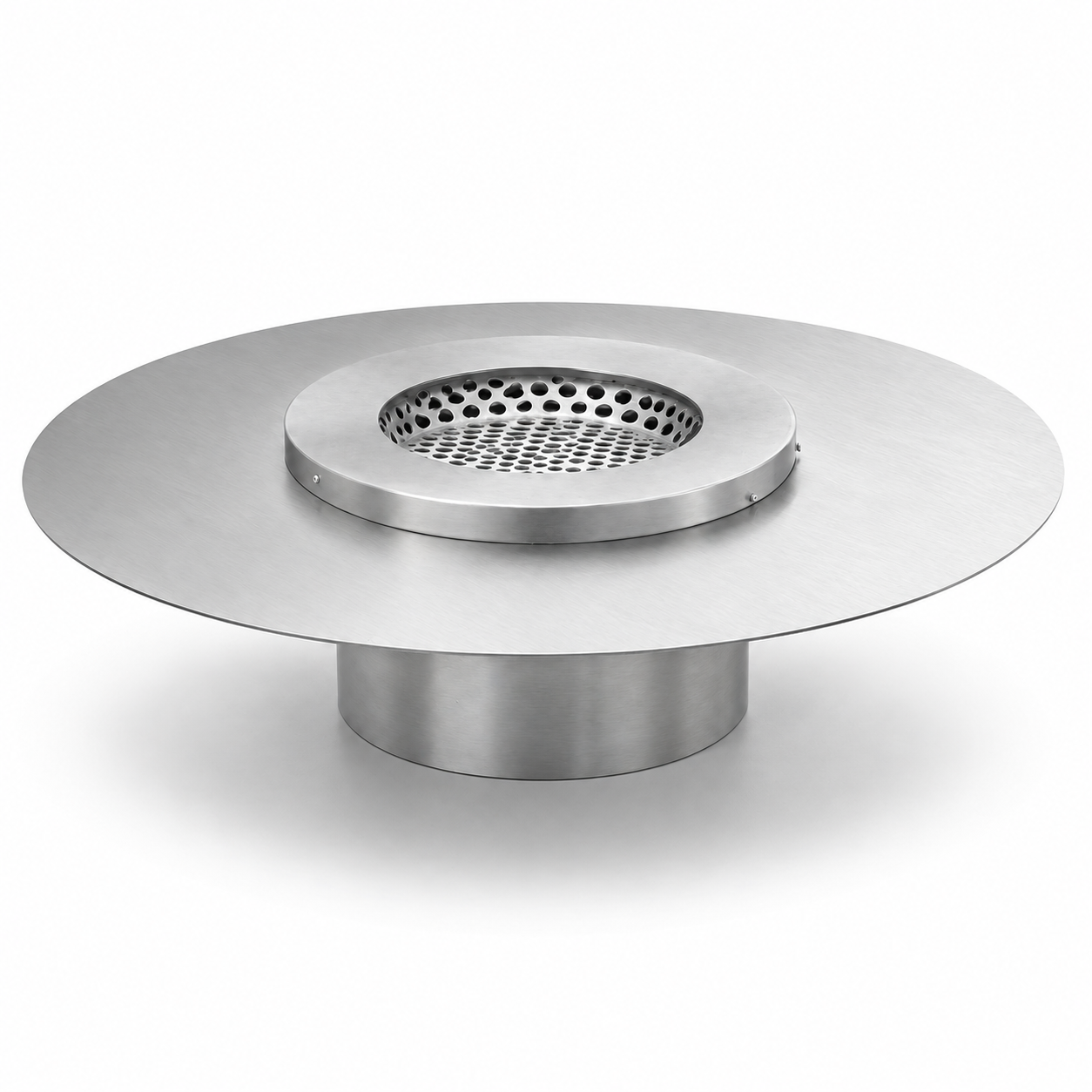

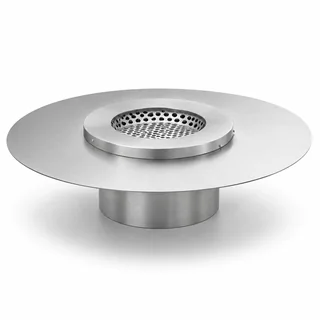

The main image shows a flat wide flange with a raised central rim. The dished-top listing has a shallow bowl-shaped surface around its opening.
- Minimum order quantity
- 1 unit
