Built-In Wood Fireplace Inserts

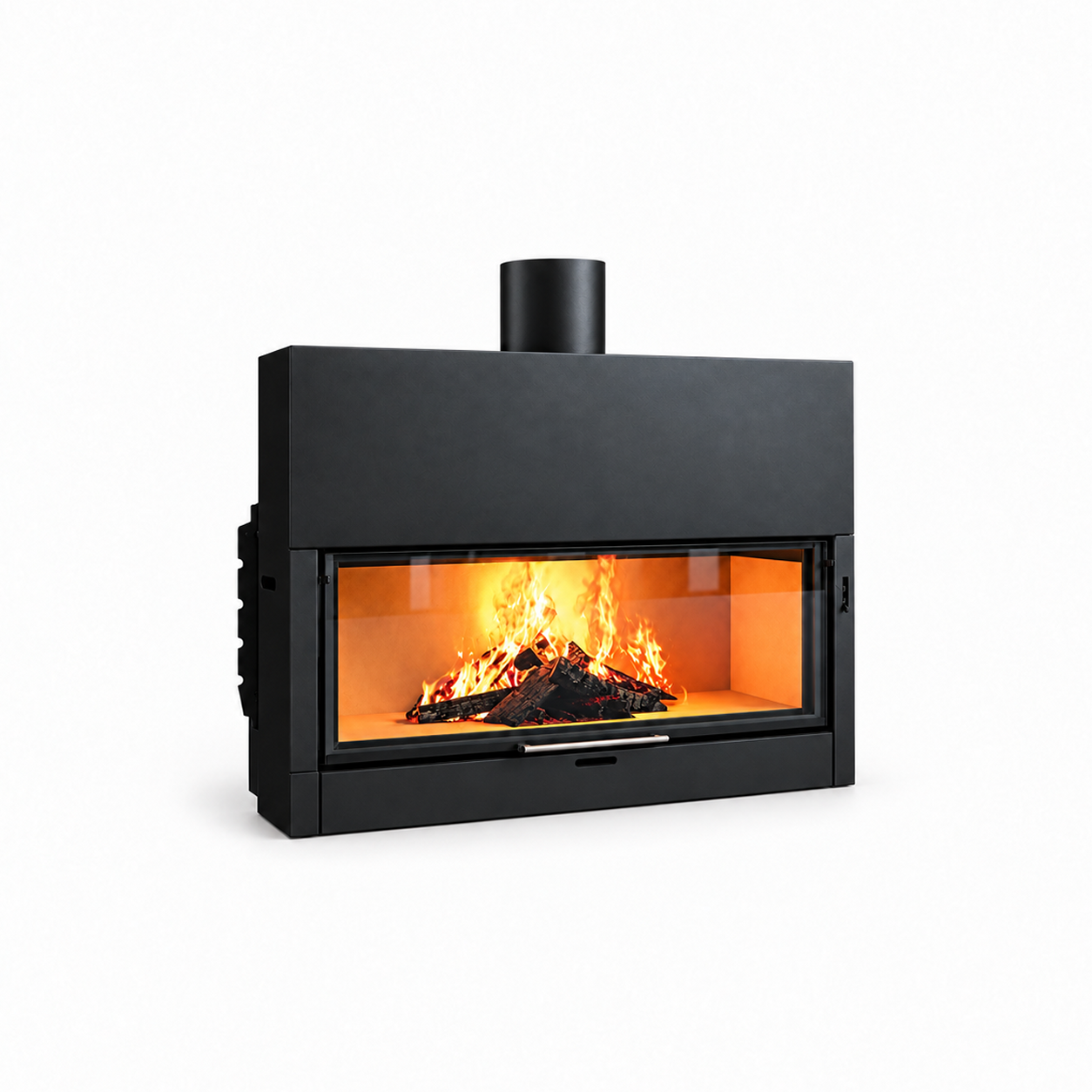

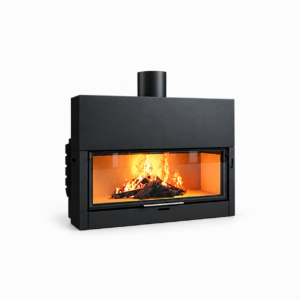

UG1600 Wood Fireplace Insert
An extra-wide built-in wood firebox with a 1565 mm reference body width. The landscape front glass sits below a concealed upper housing.
- Model
- UG1600
- Fuel
- Wood
- Body material
- Steel plate
- Reference dimensions
- 1565 × 540 × 1365 mm (L × W × H; including flue outlet height)
Price on enquiry
UG1600 has the broadest listed body width in the UG group, with an extra-wide front-facing fire view. The steel housing becomes part of the built-in enclosure. Confirm the complete body envelope, support and access arrangements before the surround is constructed.

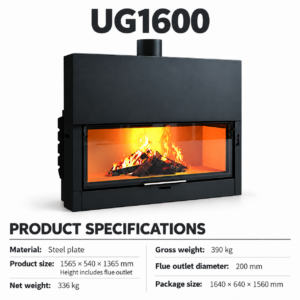

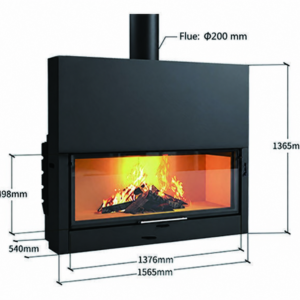

Dimensions and specifications
| Model | UG1600 |
|---|---|
| Fuel | Wood |
| Fireplace type | Wood Fireplace Insert |
| Body material | Steel plate |
| Installation format | Built-in |
| Product dimensions | 1565 × 540 × 1365 mm (L × W × H; including flue outlet height) |
| Flue outlet | 200 mm |
| Net weight | 336 kg |
| Gross weight | 390 kg |
| Package dimensions | 1640 × 640 × 1560 mm |
Planning your fireplace
Use the approved drawing to set the enclosure and finished opening. Confirm structural support, flue connection and required access before closing the surround.

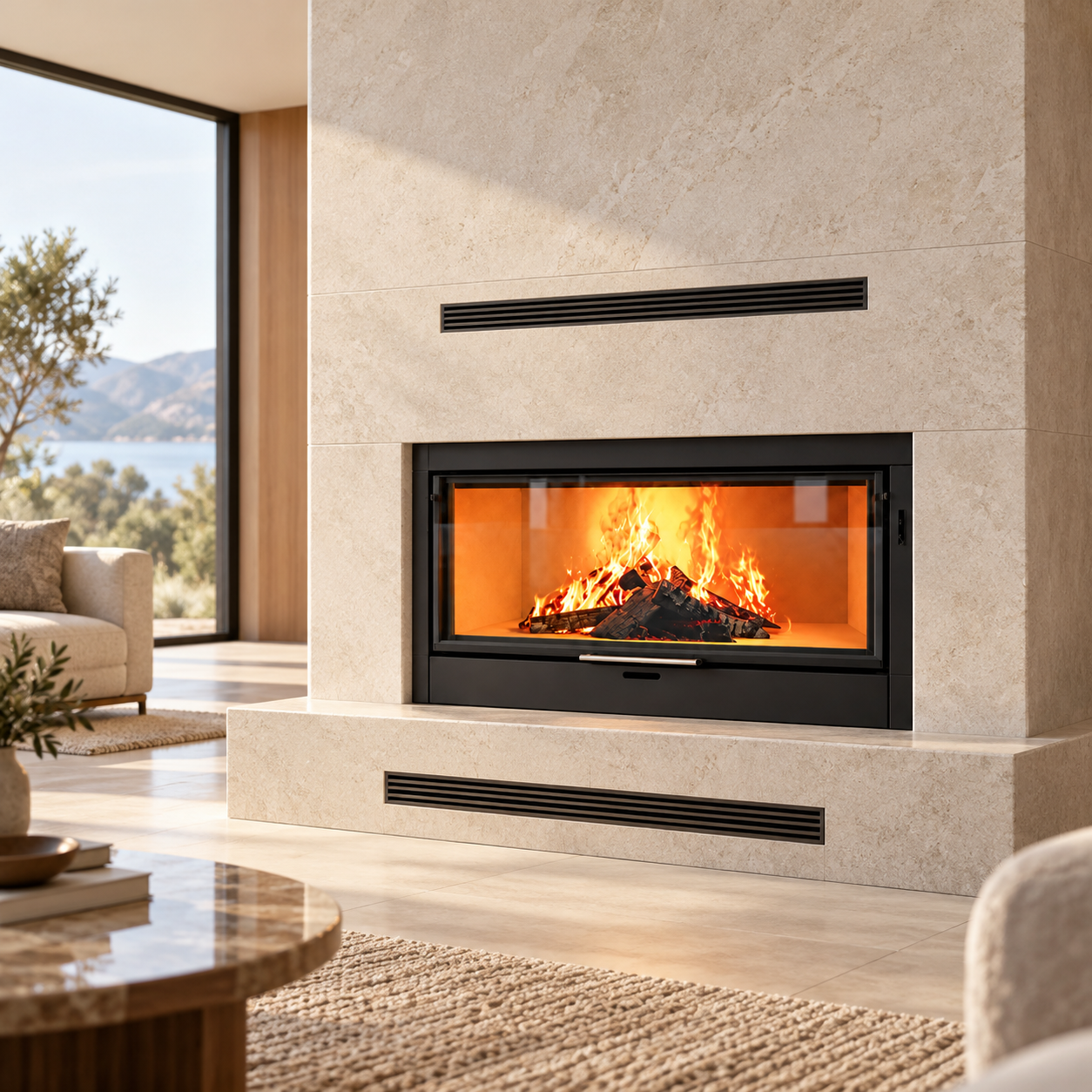

The interior scene is an AI visualization of the product. Follow the approved technical drawing for installation.
Request a quotation
For a quotation, send model UG1600, quantity and delivery destination. Include your opening or hearth drawing and the required base or surround.
