Built-In Wood Fireplace Inserts

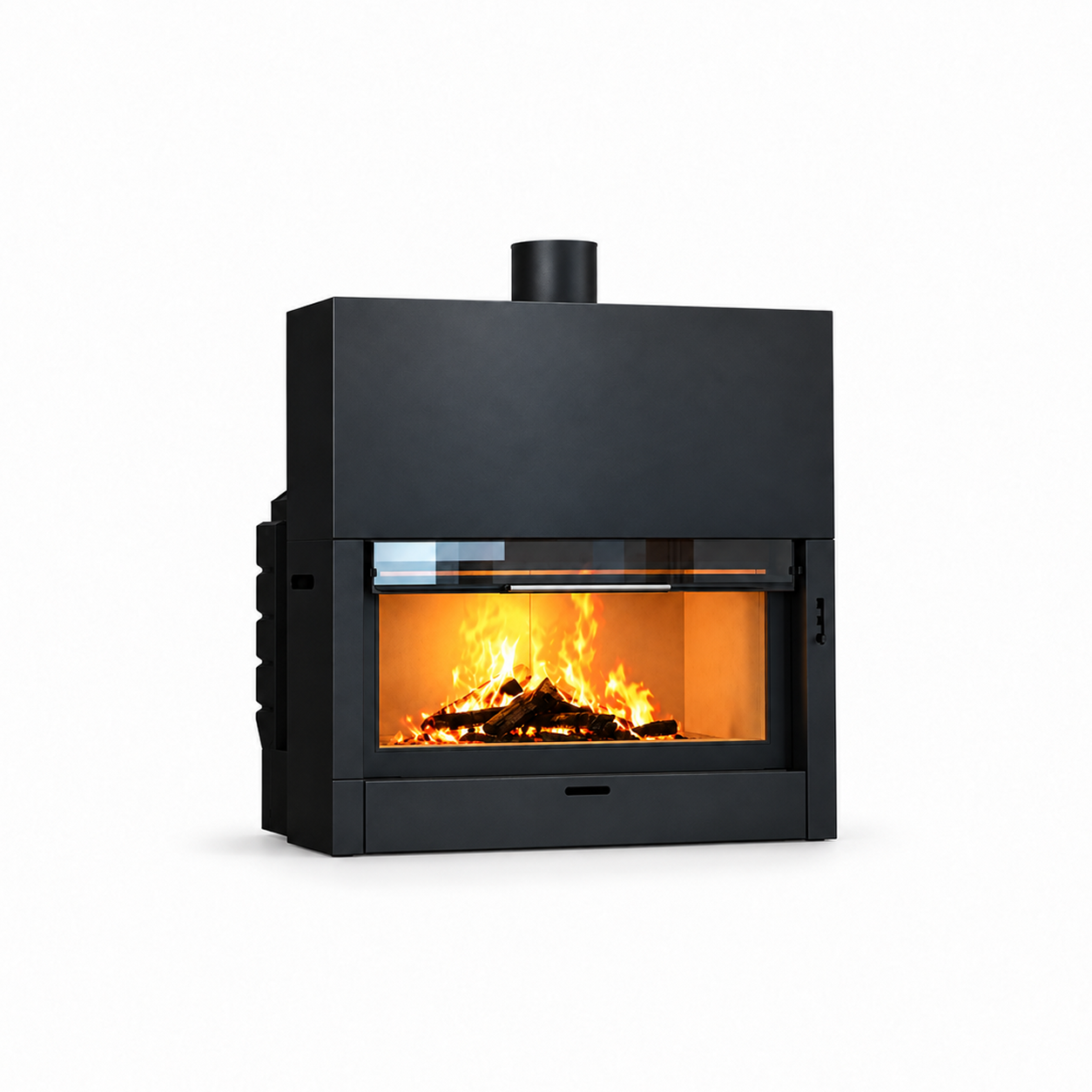

UG1400 Wood Fireplace Insert
A wide built-in steel firebox with landscape glass and a tall upper enclosure. The listed body width is 1365 mm.
- Model
- UG1400
- Fuel
- Wood
- Body material
- Steel plate
- Reference dimensions
- 1365 × 540 × 1415 mm (L × W × H; including flue outlet height)
Price on enquiry
UG1400 gives the fireplace wall a broad horizontal fire view. Above the glass, the steel housing is concealed by the planned surround. Its listed 308 kg net weight makes the confirmed support and handling requirements part of the project specification.

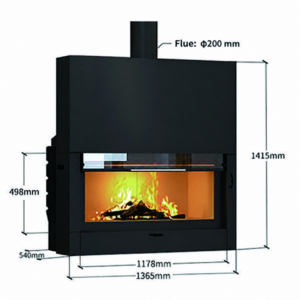

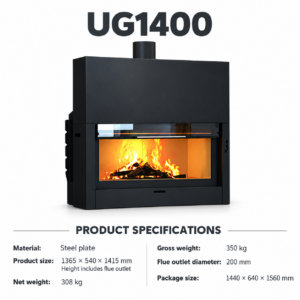

Dimensions and specifications
| Model | UG1400 |
|---|---|
| Fuel | Wood |
| Fireplace type | Wood Fireplace Insert |
| Body material | Steel plate |
| Installation format | Built-in |
| Product dimensions | 1365 × 540 × 1415 mm (L × W × H; including flue outlet height) |
| Flue outlet | 200 mm |
| Net weight | 308 kg |
| Gross weight | 350 kg |
| Package dimensions | 1440 × 640 × 1560 mm |
Planning your fireplace
Use the approved drawing to set the enclosure and finished opening. Confirm structural support, flue connection and required access before closing the surround.

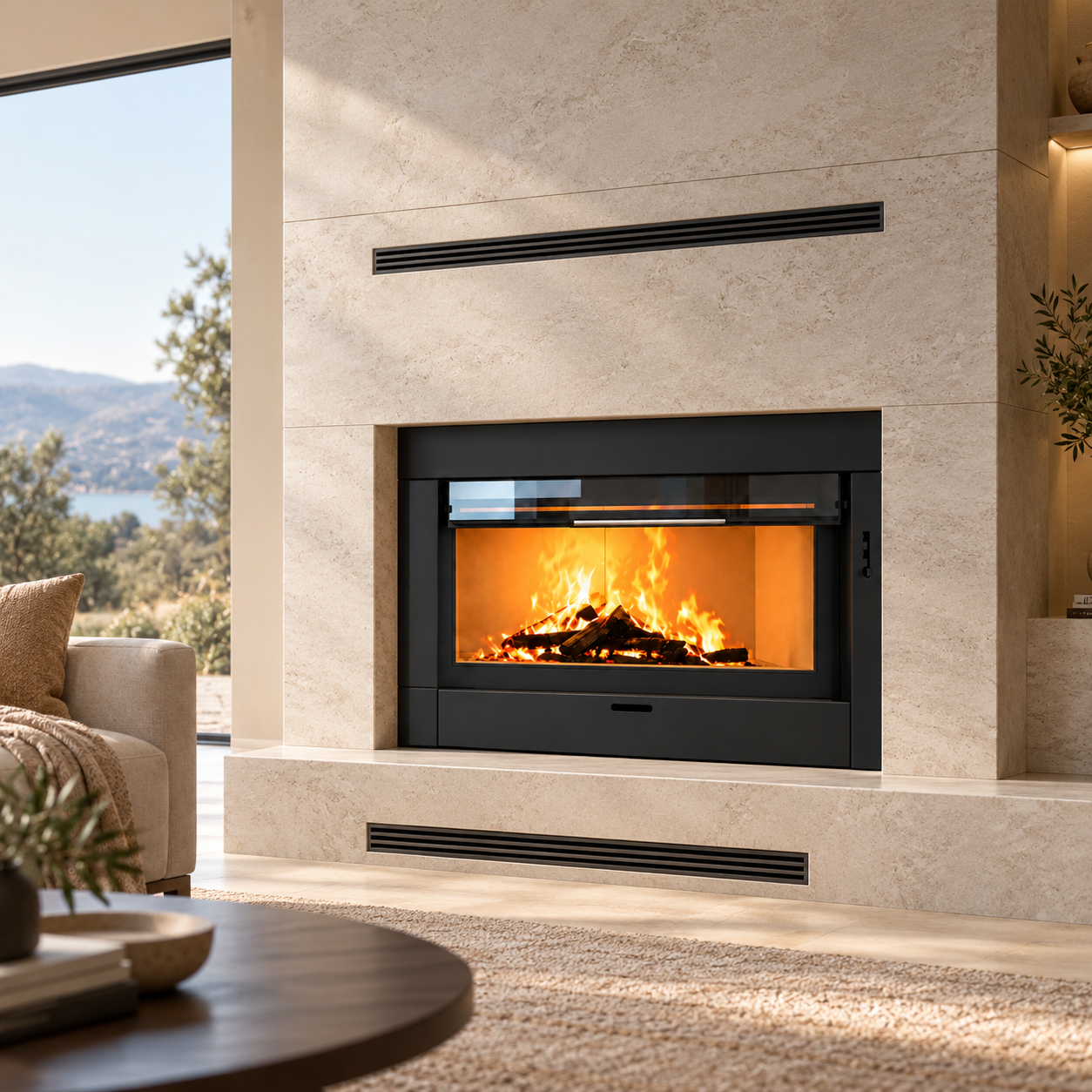

The interior scene is an AI visualization of the product. Follow the approved technical drawing for installation.
Request a quotation
For a quotation, send model UG1400, quantity and delivery destination. Include your opening or hearth drawing and the required base or surround.
