Built-In Wood Fireplace Inserts

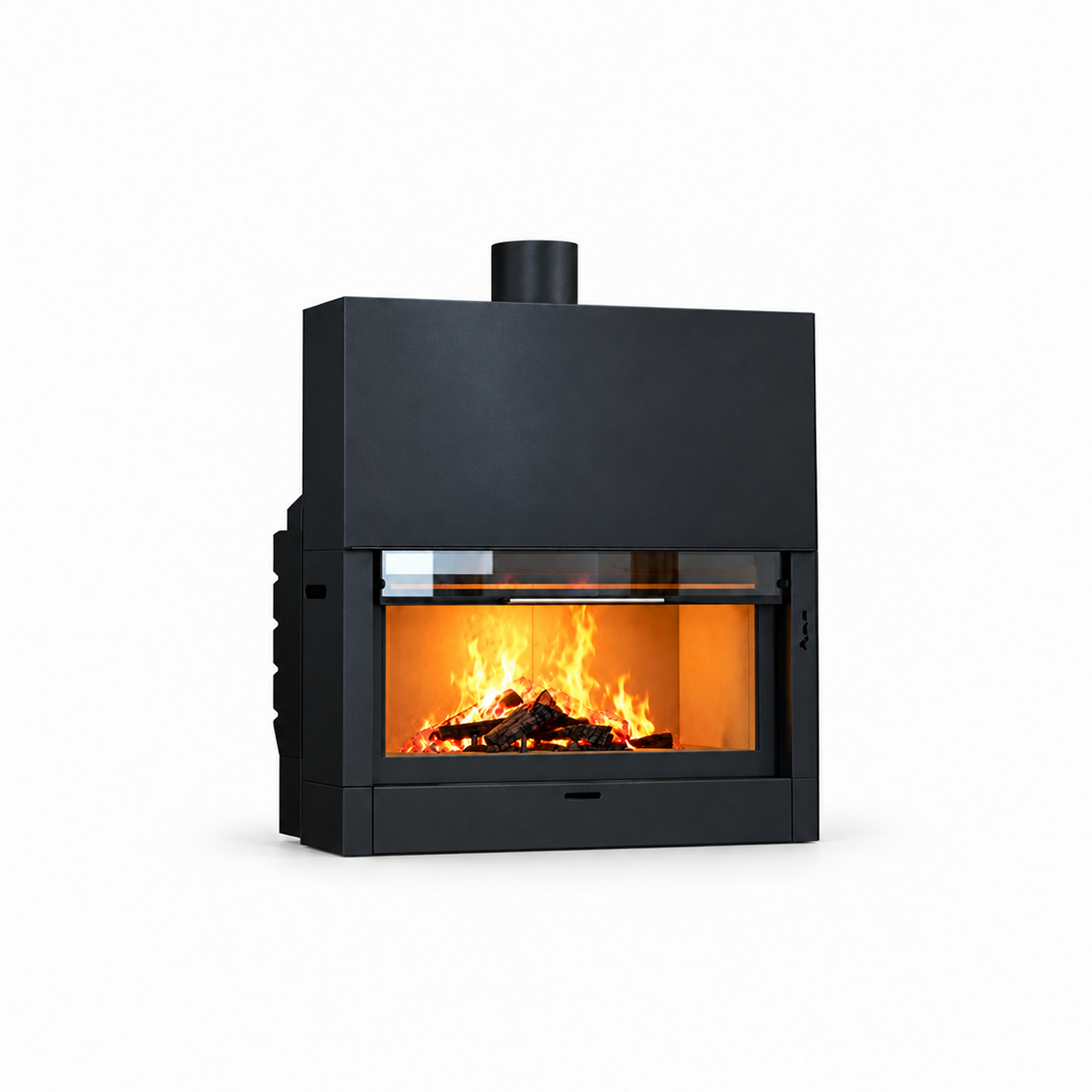

UG1200 Wood Fireplace Insert
A landscape-format built-in wood firebox with a 1165 mm reference body width. The tall upper housing is concealed within the surround.
- Model
- UG1200
- Fuel
- Wood
- Body material
- Steel plate
- Reference dimensions
- 1165 × 540 × 1415 mm (L × W × H; including flue outlet height)
Price on enquiry
UG1200 carries the wood fire across a landscape front window. Its steel housing extends above the viewing section, so the fireplace needs to be planned as a complete built-in assembly. The reference overall size is 1165 × 540 × 1415 mm; use the confirmed drawing for the finished opening.

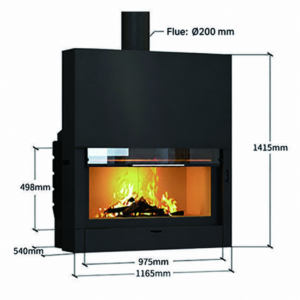

Dimensions and specifications
| Model | UG1200 |
|---|---|
| Fuel | Wood |
| Fireplace type | Wood Fireplace Insert |
| Body material | Steel plate |
| Installation format | Built-in |
| Product dimensions | 1165 × 540 × 1415 mm (L × W × H; including flue outlet height) |
| Flue outlet | 200 mm |
| Net weight | 184 kg |
| Gross weight | 320 kg |
| Package dimensions | 1240 × 640 × 1560 mm |
Planning your fireplace
Use the approved drawing to set the enclosure and finished opening. Confirm structural support, flue connection and required access before closing the surround.
The interior scene is an AI visualization of the product. Follow the approved technical drawing for installation.
Request a quotation
For a quotation, send model UG1200, quantity and delivery destination. Include your opening or hearth drawing and the required base or surround.
