Built-In Wood Fireplace Inserts
UG1000 Wood Fireplace Insert

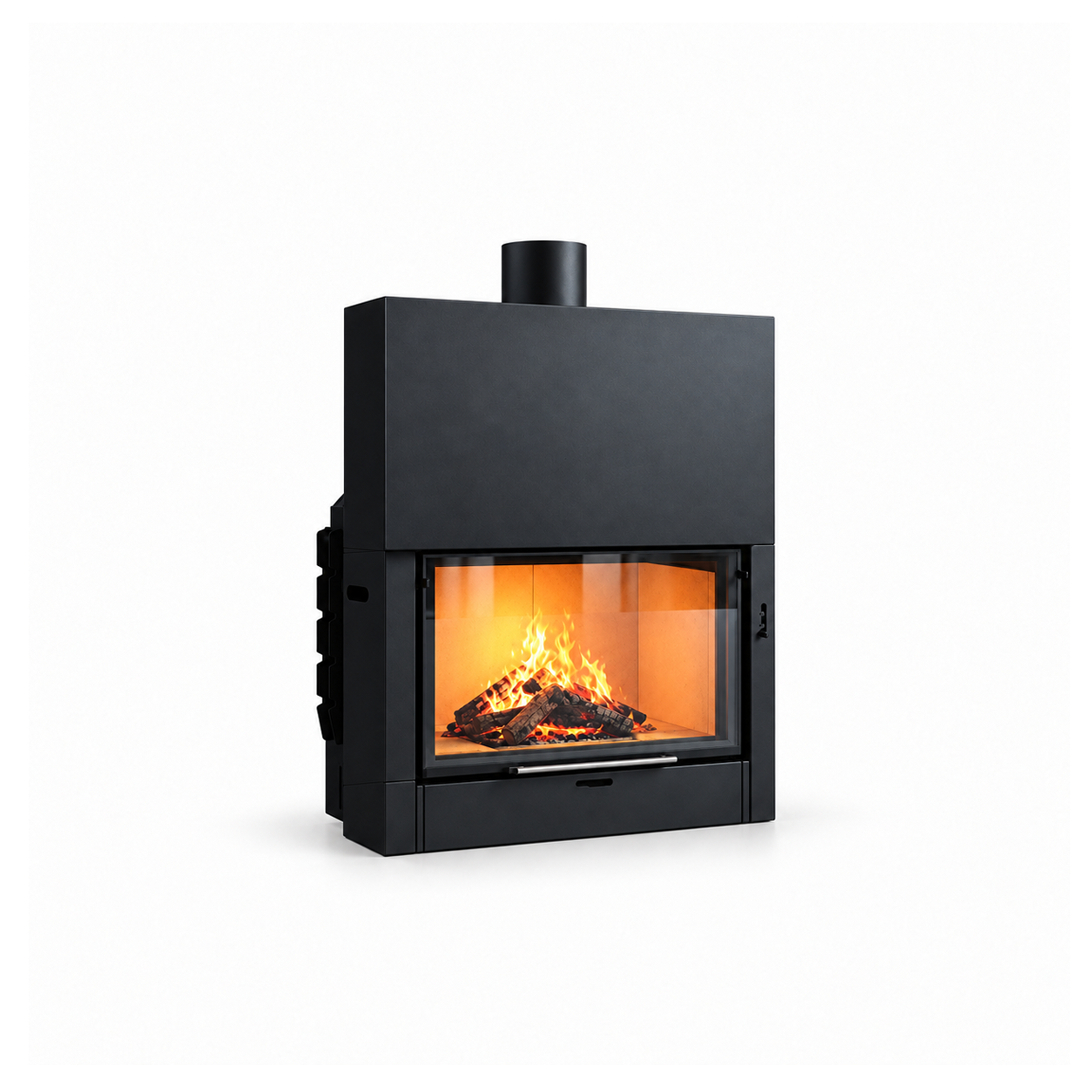

A built-in wood firebox with a broad glass front and tall upper housing. Reference body dimensions are 965 × 540 × 1415 mm.
- Model
- UG1000
- Fuel
- Wood
- Body material
- Steel plate
- Reference dimensions

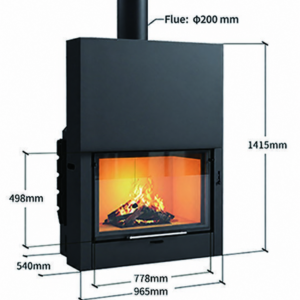

- 965 × 540 × 1415 mm (L × W × H; including flue outlet height)
Price on enquiry
UG1000 sets a broad front window beneath a tall steel housing. The upper portion sits within the planned surround, keeping the visible composition focused on the fire. Check the complete body envelope and listed weight when coordinating support and enclosure drawings.

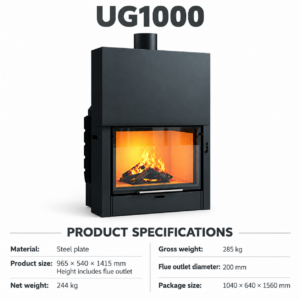

Dimensions and specifications
| Model | UG1000 |
|---|---|
| Fuel | Wood |
| Fireplace type | Wood Fireplace Insert |
| Body material | Steel plate |
| Installation format | Built-in |
| Product dimensions | 965 × 540 × 1415 mm (L × W × H; including flue outlet height) |
| Flue outlet | 200 mm |
| Net weight | 244 kg |
| Gross weight | 285 kg |
| Package dimensions | 1040 × 640 × 1560 mm |
Planning your fireplace
Use the approved drawing to set the enclosure and finished opening. Confirm structural support, flue connection and required access before closing the surround.

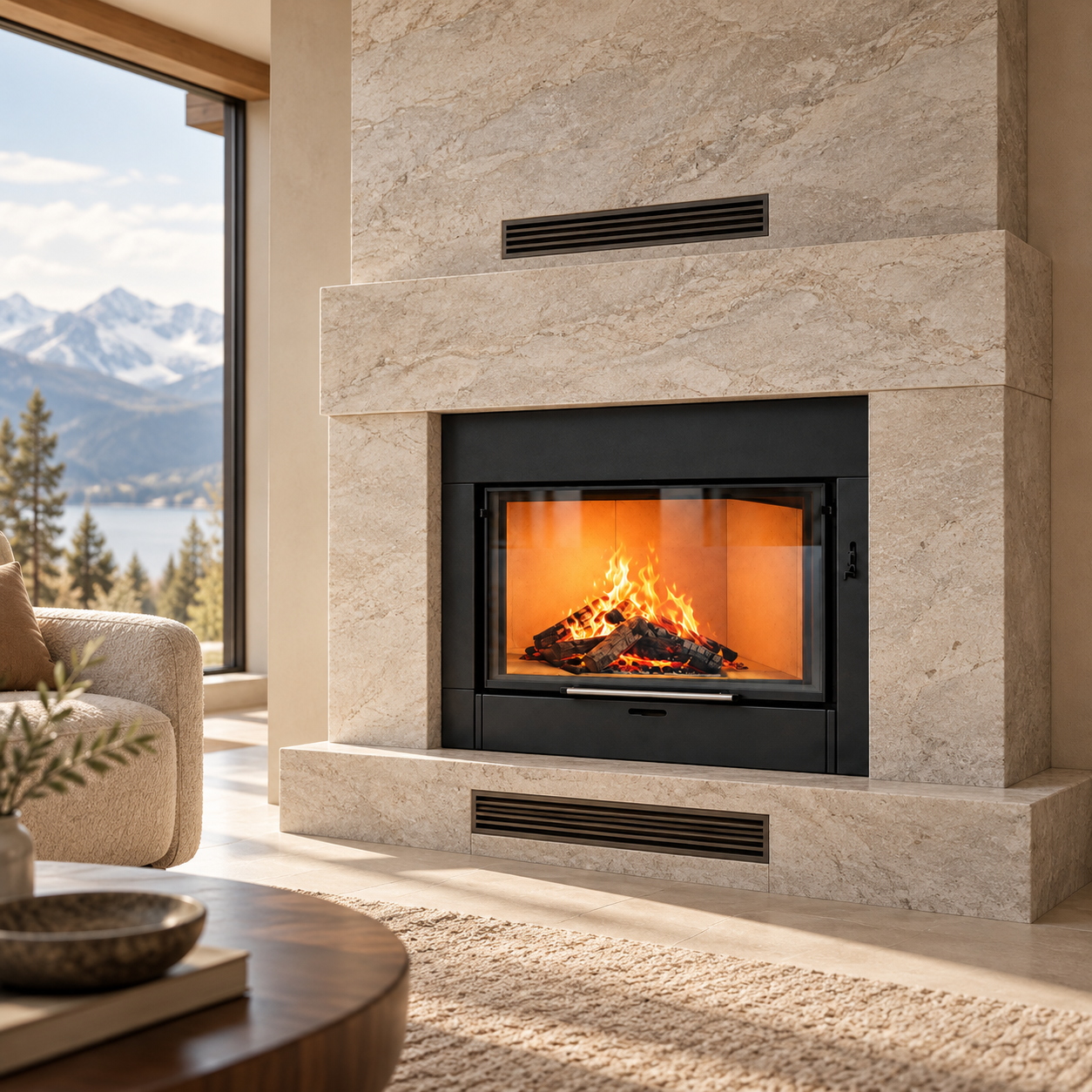

The interior scene is an AI visualization of the product. Follow the approved technical drawing for installation.
Request a quotation
For a quotation, send model UG1000, quantity and delivery destination. Include your opening or hearth drawing and the required base or surround.
