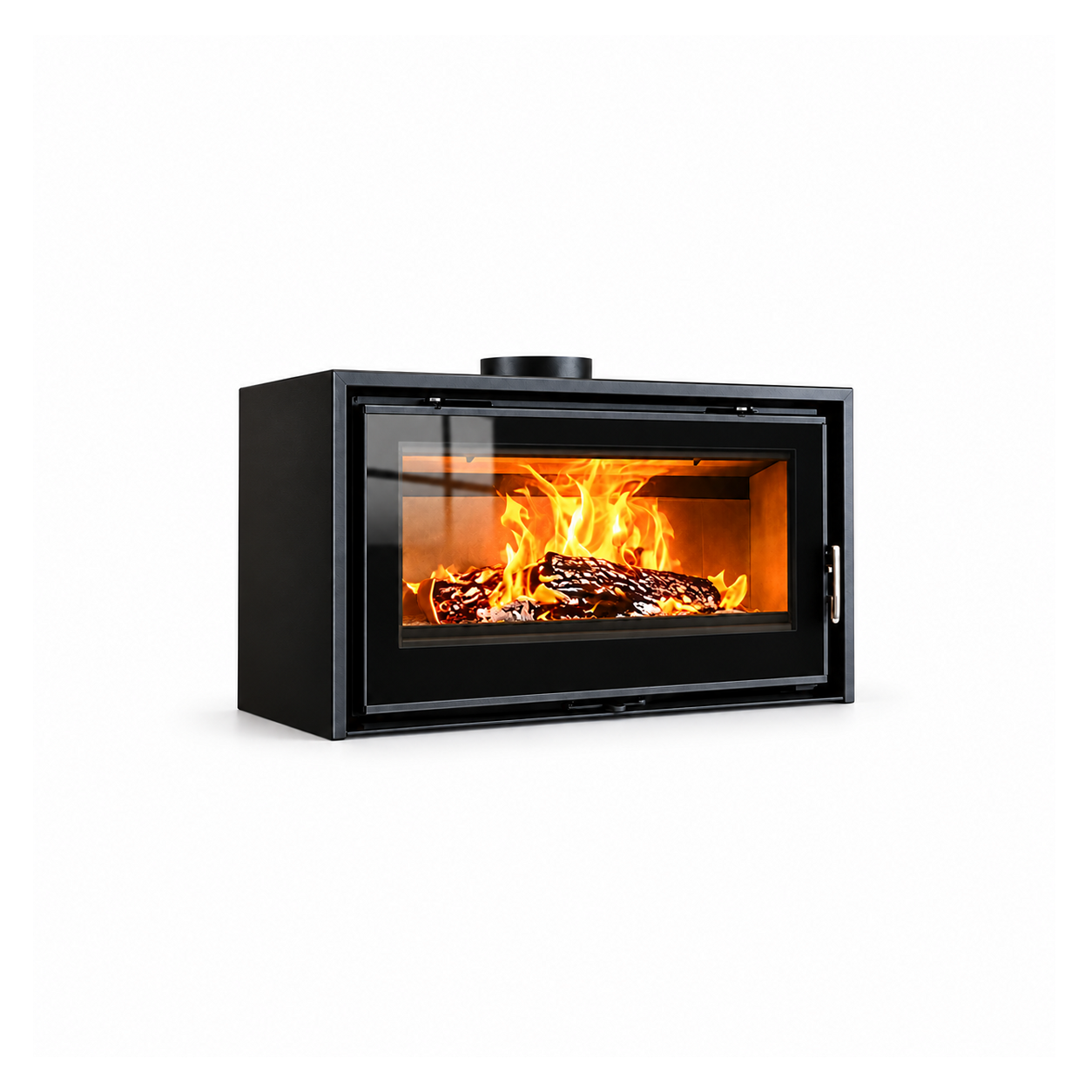

SG1050 Wood-Burning Firebox
A landscape-format steel firebox with a 1050 mm reference width. The catalogue shows a separate storage base beneath the broad glass front.
- Model
- SG1050
- Fuel
- Wood
- Body material
- Steel plate
- Reference dimensions
- 1050 × 450 × 610 mm (L × W × H; including flue outlet height)
Price on enquiry

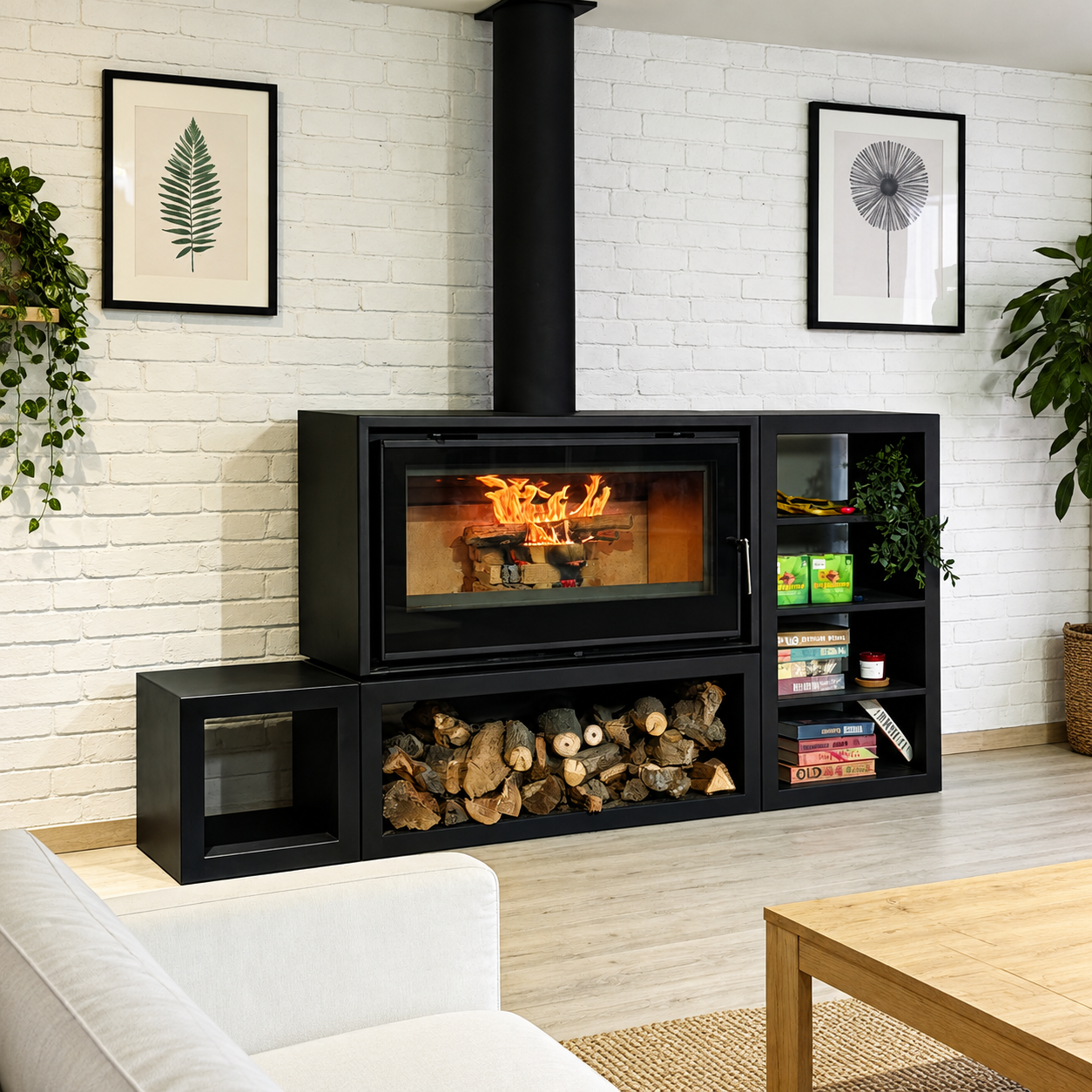

SG1050 stretches the fire view across a landscape-format steel body. The broad front glass is the main visual feature; a separate storage base is shown in the catalogue. Plan the two parts together if you want the same arrangement, and confirm the base in the quotation.

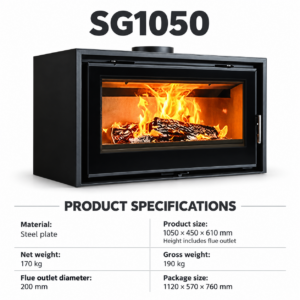

Dimensions and specifications
| Model | SG1050 |
|---|---|
| Fuel | Wood |
| Fireplace type | Wood-Burning Firebox |
| Body material | Steel plate |
| Installation format | Firebox configuration |

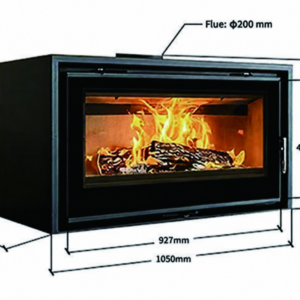

| Product dimensions | 1050 × 450 × 610 mm (L × W × H; including flue outlet height) |
| Flue outlet | 200 mm |
| Net weight | 170 kg |
| Gross weight | 190 kg |
| Package dimensions | 1120 × 570 × 760 mm |
Planning your fireplace
Specify the firebox together with its base or surround. Confirm the complete assembly drawing, support and flue connection before the hearth is built.
Catalogue photographs illustrate the design. Follow the supplied technical drawing for the final installation.
Request a quotation
For a quotation, send model SG1050, quantity and delivery destination. Include your opening or hearth drawing and the required base or surround.
