SXRX Manual SXRXS-X-008
Oval Manual Insert

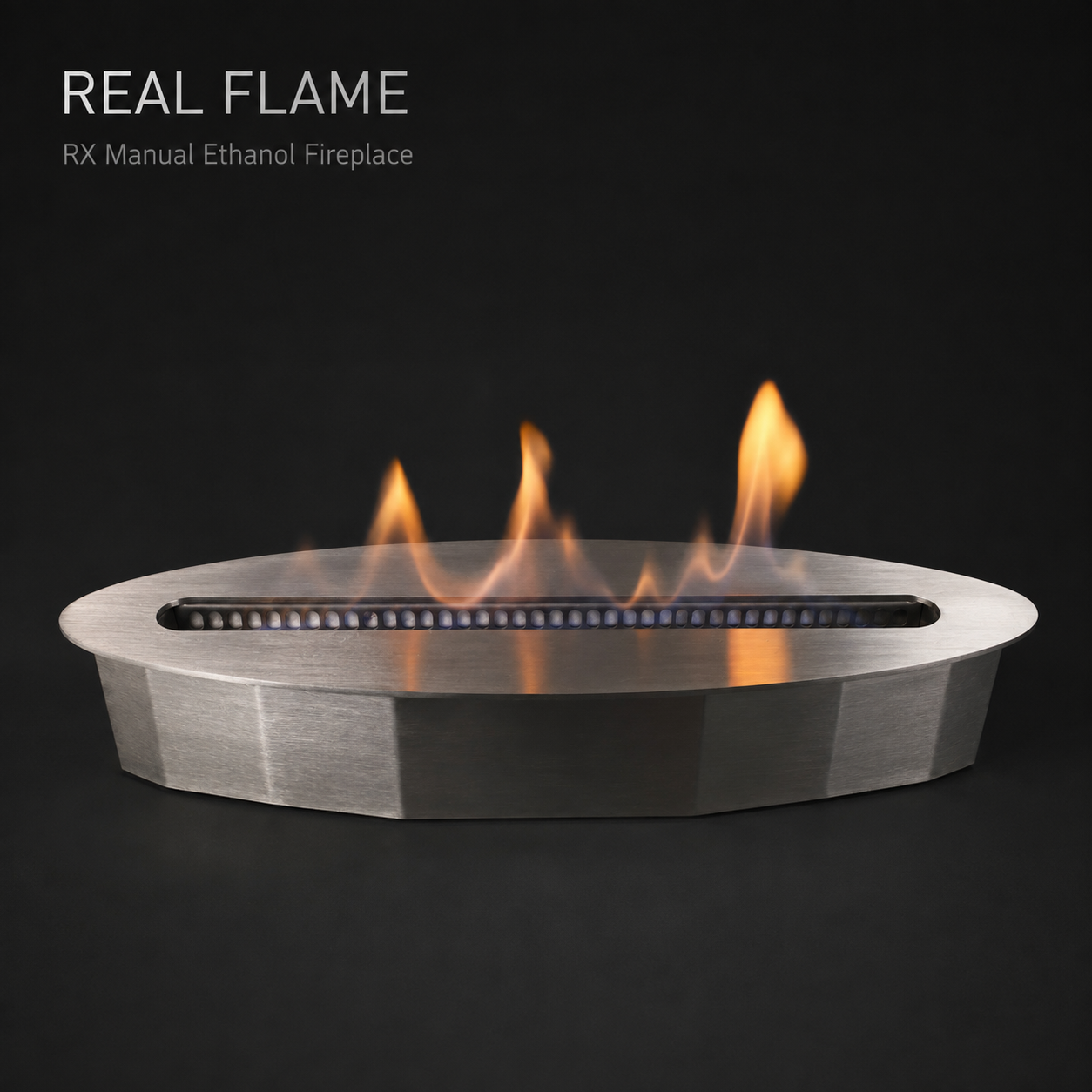

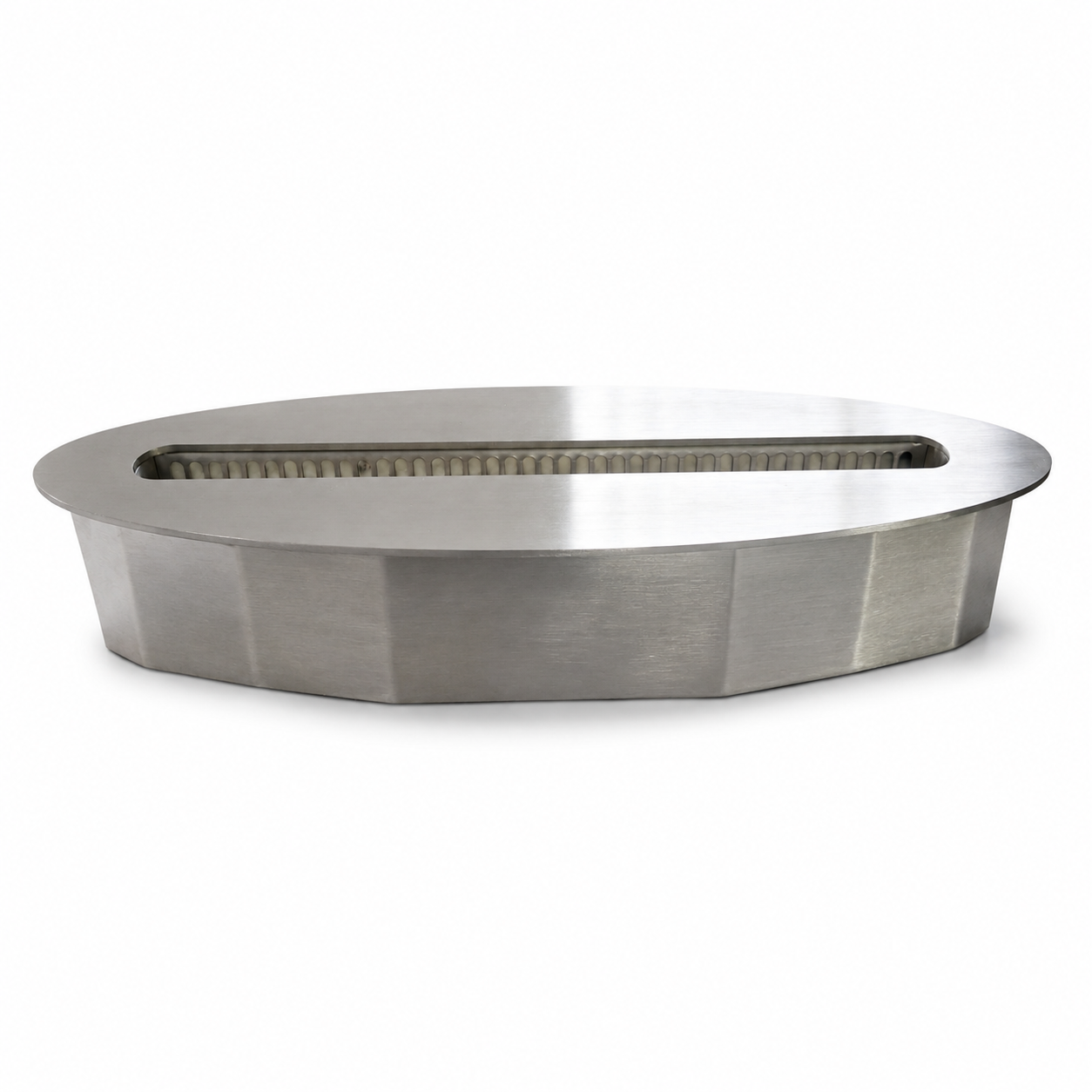

A low oval manual bioethanol insert with a silver rim and straight burner opening.
- Reference dimensions (mm)
- Base burner: 500 × 180 × 105 / Base burner: 2000 × 180 × 105
- Supply scope
- Price to confirm against the current configuration
- Glass
- Glass not included.
Previous reference price; current quotation required.
Purchase options
Confirm configuration, quantity and price before ordering.
10 in stock
- Reference lead time
- 7–15 days
- Freight
- To be agreed for the destination.
- After-sales support
- Remote assistance and return for repair.
Dimensions and installation
Check the selected size before planning the opening.
Request an installation fit checkConfiguration dimensions
- Reference dimensions (mm)
- Base burner: 500 × 180 × 105 / Base burner: 2000 × 180 × 105
Product references are not installation openings. Confirm the opening, support and clearances for the selected configuration.
Compare all configuration sizes & reference prices
Configuration reference
Sizes and reference prices
No size is selected as a default. Final configuration, price and lead time are confirmed in the written quotation.
Prices shown in CNY. Final currency and total are confirmed in the written quotation.
Reference lead time · All configurations
- 1, 5 or 10 units
- 7–15 days
Applies to all configurations
Price to confirm against the current configuration
Base linear burner dimensions do not describe the oval finished enclosure. Confirm overall geometry.
Scroll across to compare every specification.
| Model / SKU | Dimensions (mm) | Package dimensions (mm) | Packed weight (kg) | Reference price (CNY) |
|---|---|---|---|---|
| SXRXS-X-008-2000 | Base burner: 2000 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1800 | Base burner: 1800 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1700 | Base burner: 1700 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1600 | Base burner: 1600 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1500 | Base burner: 1500 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1400 | Base burner: 1400 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1300 | Base burner: 1300 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1200 | Base burner: 1200 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1100 | Base burner: 1100 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-1000 | Base burner: 1000 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-900 | Base burner: 900 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-800 | Base burner: 800 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-700 | Base burner: 700 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-600 | Base burner: 600 × 180 × 105 | To confirm | To confirm | To confirm |
| SXRXS-X-008-500 | Base burner: 500 × 180 × 105 | To confirm | To confirm | To confirm |
Product details
A low oval manual bioethanol insert with a silver rim and straight burner opening. Overall oval dimensions are confirmed by drawing.

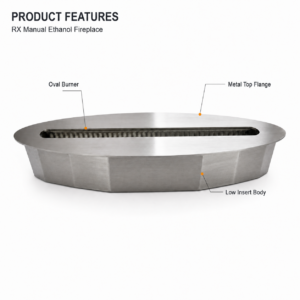

This oval manual bioethanol insert in the SXRX Manual range combines a silver body with a straight central burner opening. Its low profile and rounded perimeter give the surrounding feature a different outline from a rectangular insert.
Oval manual bioethanol insert dimensions
The associated base linear burners are 500–2000 mm long, 180 mm wide and 105 mm high. That range describes the internal linear burner, not the outside dimensions of the oval enclosure.

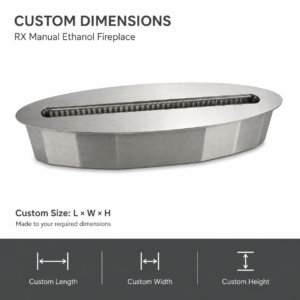

Provide the desired overall length, width and surrounding design when requesting a quote. Confirm the oval geometry, visible rim, support and installation opening on the final drawing.
Review the fireplace planning guide when coordinating the selected configuration and its installation drawing.
Frequently asked questions
Are the listed linear dimensions the size of the oval body?
They are the base linear-burner references: 500–2000 × 180 × 105 mm. The finished oval outline has separate dimensions.
What information is needed for an oval installation?
Specify the intended overall oval length and width, available depth and surrounding construction. The final drawing should confirm the rim and installation opening.
- Minimum order quantity
- 10 unit
